This Page describes :

STANDARD, fixed-size platform LIFTS

The STANDARD SUMMERLIFT model is ideal for applications calling for the raising and lowering of most 25" to 27" TV's & computer monitors.

Use links at right for OTHER models

NEW! Get maximum design flexiblity with Summerlift CL (CableLift) models
Ideal for Plasma TV's, small spaces, ceiling lifts, etc.

Lift & Roll™ Jacking Caster Mechanism
With retractable wheels


Products & Specifications


At right is the Summerlift STANDARD MODEL. It has a fixed platform size of 26 1/8" wide x 20" deep. The unit itself is 5 1/2" high. This model raises and lowers itself via rollers equipped with 2000 lb test nylon straps. The STANDARD model is ideal for applications calling for the raising and lowering of most 25" to 27" TV's & computer monitors. This patented, low voltage, FOUR-POINT LIFT is self-contained, practical, reliable, dependable, QUIET, and reasonably priced. It is significantly superior in performance and ease of installation to scissors and rack and pinion lifts.
 For larger/heavier TV's and for maximum cabinetry design flexibility click at the link at the top of this page to also view the new CL (cable-lift) models.

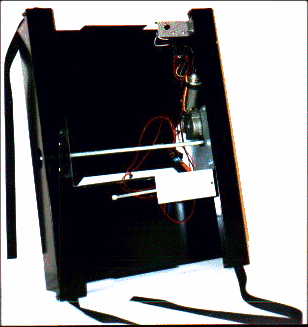

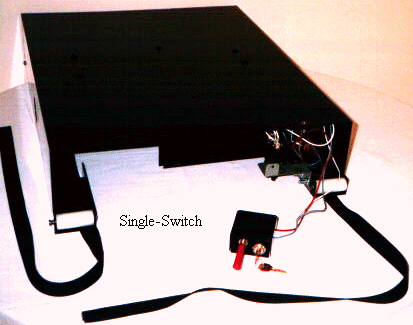

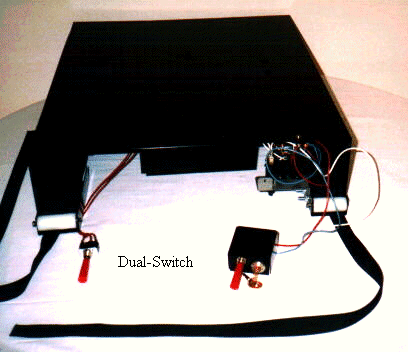

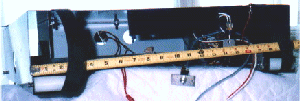

Click on photos for additional views of the STANDARD model Summerlift.

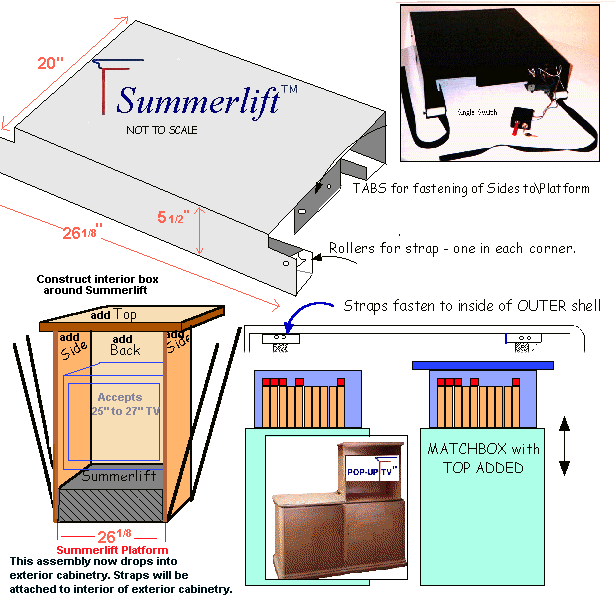

Lift Basics:
A box inside a box is effectively a close fitting drawer.
Picture an old fashioned wooden matchbox.
Now slide the interior box to reveal its contents.
If you were to stand that match box on end...
And replace the bottom portion of
the interior box with the Standard Summerlift.
You would now have a motorized unit.
See images below or view more detailed LIFT BASICS page:
STANDARD M ODEL:


  • Summerlift™ is easily mounted for desktops to conceal computer equipment
  • Low voltage (12 v DC) for safety, ease of control and precision adjustment
    complies with NEC, CSA, UL, OSHA standards
  • Environmentally protected - - works for indoor and outdoor applications
  • Included key-lock lift control switch provides use-control and security
  • Built-in auto charger
  • Light Weight (200# lift weight 31 LB..)
  • Integral unit is fully assembled ready for installation in shop or on-site
  • Four-point lift means unevenly distributed loads move smoothly
  • Precise height positioning with manual or remote control (option)
  • Platform sized to accept computer equipment (17" - 21" monitor depth accommodated)
  • 45"+ travel range in standard configuration
  • Economical
  • Reliability Assured - - Unit tested to 10,000+ up/down cycles with 125 LB load
  • Engineered to work and last
  • Built and fully tested in the U.S.A.
  • Rapid Delivery

Lift Features and Operation
Rack
&
Pinion
Scissors
Lift
Stable, smooth lifting
of uniformly distributed loads
Yes
Yes
Yes
Stable smooth lift
of unbalanced loads
Yes
No!
No!
Speed Adjustable Lift and Lower
Yes
No!
No!
Infinite, uniform position control
throughout movement range
Yes
Yes
No!
Platform sized for computer equipment
Yes
No!
No!
Noise Level less than 60 dBa
Yes
No!
No!
Variable lifting height
limited ONLY by cabinetry design
Yes
No!
No!
Key-lock lift control switch
provides use-control and security
Yes
No!
No!
Powered Swivel Platform (option)
Yes
Yes
No!
Remote Control
(option)
Yes
Yes
Yes
Safe Low Voltage
12 volt operation
Yes
No!
No!
10,000 cycle (up/down)
operation warranty
@125 LB.. loading
Yes
No!
No!
Broad single unit Capacity Range
0 - 200#
Yes
No!
No!

STANDARD Summerlift™ Lift Capacity: 200# operating load
(standard configuration)
Special purpose lifts to 750#
Travel Rate: 1.5 feet/second @ 80# load
Available: Special purpose lifts above 750#

Battery Life:
Normal replacement cycle 5 years
Battery 12 v 4.5 A

Automatic Battery Charger: Included
(requires 110v connection)
FRIWO auto regulated charger

Dimensions:
Summerlift™ is self-contained. All components are contained within its 5 ½" height powder-coated, heavy weight sheet metal lift platform. 26 1/8 " in length, 20" in width, the lift platform upper surface holds computer monitors and CPU, or television.

Warranty: 10,000 cycles

Single Page Printable Product Sheet:
Design & Engineering assistance
View:


NEW CL MODELS
Summerlift Cable Lift models Are
Adjustable To Fit YOUR Cabinetry!
32 inch TV - 36" TV - 40" TV - Plasma TV - Built-In's - Marine Applications - Ceiling mount TV - Partition Wall - Custom application - Converting an antique
No problem.
NEW Summerlift four-point Cable Lifts are designed for cabinetmakers, contractors, and individuals  with reasonable mechanical skills.

Their small size (8"h x 6"w x 3"d), ease of installation and flexibility make them suitable for a broad range of lifting and lowering applications. 12 volt Summerlifts (ideal for use by European cabinetmakers as well!) operate for a guaranteed 10,000 cycles with load capablities ranging from 160 to 600 pounds. DETAILS



JACKING MECHANISM WITH RETRACTABLE WHEELS.
Designed to be bolted to furnishings or equipment. Provides the unique ability for high quality furnishings or other products to enjoy on demand mobility, without the need to compromise integrity of surrounding decor with unsightly wheels. The user-friendly, patented Lift & Roll™ mechanism permits furnishings or equipment to rest securely on the floor until movement is again required. VIEW DETAILS
